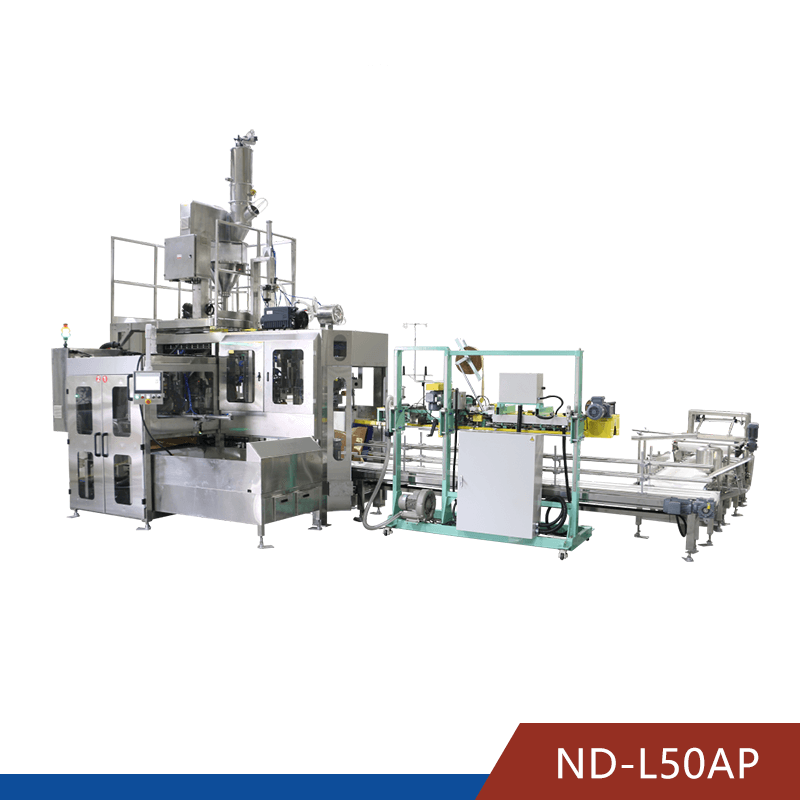

ND-L50AP Powder Automatic Bagging Machine

Model ND-L50AP bagging machine is an automatic bagging machine for 20-50kg powder quantitative packing, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent,integrated,high efficiency,full automatic production.

  • Max Speed: 180 bph
  • Min Size: 800mm*500mm
  • Max Size:1000mm*600mm
Feature Of POWDER AUTOMATIC BAGGING MACHINE ND-L50AP

1.High level automatic weighing, bag loading, bag opening, filling, sewing or heat sealing.

2. Suitable for woven bags, kraft paper bags(inside PE bag), coated woven bags, PE bags, laminated film bag.

3.With horizontal double screw feeding, bucket measurement, weighing speed, high accuracy.

4.Air pumping device can be optional at the feeding port to effectively reduce the gas content in the material.

5.The bag holding mechanism is equipped with an exhaust device to effectively discharge the bag mouth gas.

6.Many places in the packaging machine are equipped with dust removal port to avoid dust.

7.With fault automatic alarm function, according to the fault prompt can be quickly eliminated.

8.Customize the 20kg-50kg packaging line according your factory scene and individual requirements.

9.It can equip with other related machines ,like metal checker, weight checker,labeling , palletizing,finished pallet wrapping machine and so on.When the packaging line running no need worker at the scene, save cost to the greatest extent.

1ModelND-L50AP
2Packing weight25kg-50kg
3Packing speed120-180bags/hour
4Weighting accuracy± 0.1%~0.2%
5Bag size(L*W)800mm-1000mm(L)×500mm-600mm(W)
6 Environment temperature0~40℃
7Voltage power/ FrequencyAC380V 50Hz,10KW
8Air requirement0.4-0.7MPa,22Nm3/h
9Machine dimension
(L*W*H,mm)
7553×3829×4509

Suitable for woven bags, kraft paper bags(inside PE bag), coated woven bags,PE bags, laminated film bag.

According the sealing method there are single-line stitching, double-line stitching, hemming stitching, inner lining heat sealing,&outer bag stitching, edging stitching and heat sealing.

Model ND-L50AP is for quantitative packing 25-50kg powder products. Like milk powder, flour, starch,sodium bicarbonate,chemical powder ,etc. It can pack max 180 bags/hour.

The suction cup is cracked Solution 1: Replace in time

Photoelectric did not catch the reflector Solution: Clean up photoelectric dust

The speed of the conveyor belt is not synchronized with the stand-up bag conveyor Solution: Adjust the frequency converter of the nip shaping machine

The conveyor belt is stretched Solution: Adjust the belt tension of the driven belt wheel to a proper degree

Detailed difference of each item, please click here to read more.

If you want to preserve the flavor of coffee to the greatest extent, let your customers have the wonderful experience of high-quality coffee, choosing pure non-woven material is the best choice. For packaging drip coffee bag with pure non-woven material, must choose ultrasonic sealing packaging machine.

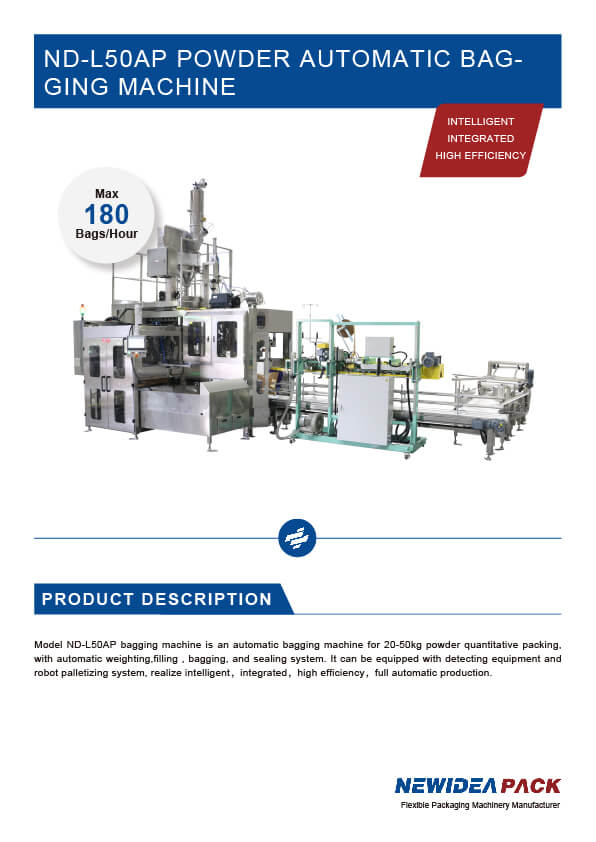

Product Sheet Download
