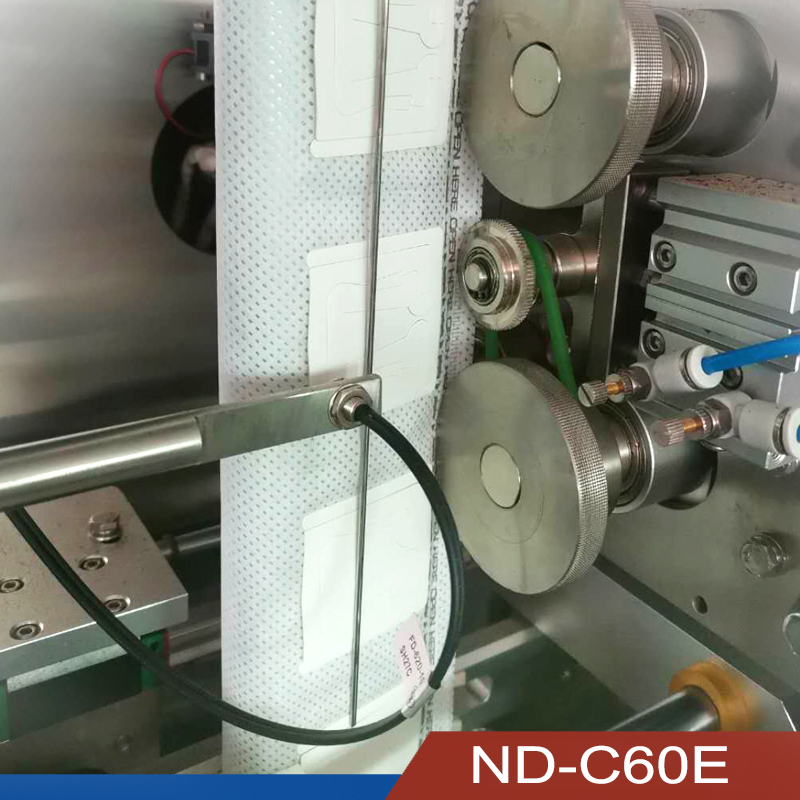

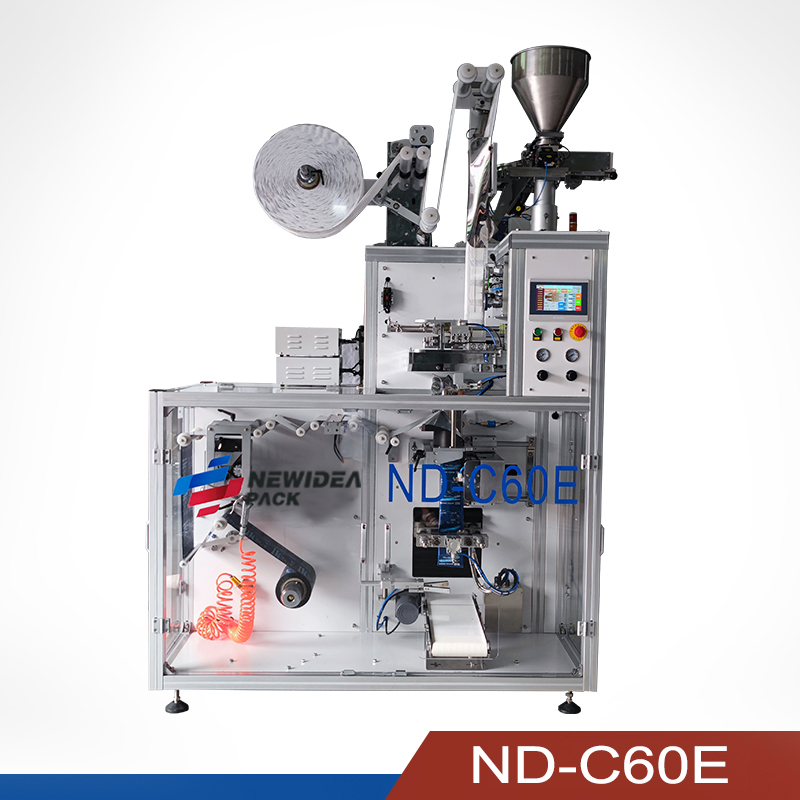

ND-C60E Drip Bag Coffee Packaging Machine

ND-C60E

The ND-C60E Drip Bag Coffee Packaging Machine is a professional packaging equipment that integrates full-process functions including bag making, measuring, and nitrogen-filled freshness preservation. It adopts high-precision positioning, PLC intelligent linkage, and high-quality international components to achieve a residual oxygen rate of less than 0.8% in the bag for long-term freshness retention, a packaging speed 20% higher than that of peers, and full-process automation, while featuring cost reduction, efficiency improvement, and quality assurance.

Packing Speed: 40-60 bags/min
Filling Range: 5-12g
Inner Bag Size 74*90 mm (Film width:180 mm)
Outer Bag Size 120*100 mm (Film width:200 mm)
ND-C80E Interactive Features Module

Features Of Drip Bag Coffee Packaging Machine

  • 1 The machine can complete the functions of bag making,measuring,filling, nitrogen filling,sealing, cutting,counting,coding,etc.
  • 2 The machine is equipped with multiple sensors for accurate positioning and avoids waste of materials and packaging materials.
  • 3 The feeding system of this machine is equipped with a vibration and stirring device to prevent coffee powder from agglomerating and improve the measurement accuracy. Effectively solve the problem of material cleaning
  • 4 The unique nitrogen filing design makes the residual oxygen in the bag less than 0.8% ensuring the freshness and lasting of the coffee.
  • 5 The use of internationally renowned components ensures long-term stable operation. The packaging speed is more than 20% higher than that of its peers.
  • 6 The system is controlled by PLC, and can communicate and work together with the upper and lower process equipment such as the feeding machine and the cartoning machine to realize the automation of the whole process.

The advanced nitrogen filling technology ensures that the coffee remains fresh for an extended period, preserving its aroma and flavor. This packaging solution is ideal for businesses looking to expand their market reach while maintaining product quality.

Technical Parameters Of Drip Bag Coffee Packaging Machine

Parameter Specification
Model ND-C60E
Packing Speed 40-60 bags/min
Filling Range 5-12g
Inner Bag Size 74*90 mm (Film width:180 mm)
Outer Bag Size 120*100 mm (Film width:200 mm)
Sealing Method Full ultrasonic Sealing ForInnerHeat Sealing For Envelope
Air Pressure 0.65mpa
Gas Consumption 0.5m³/min
Power supply 220V, Single Phase, 50Hz,3.7Kw
Weight 750kg
Dimensions 1350x850x2200mm(L*W*H)

Bag Type Of Drip Bag Coffee Packaging Machine

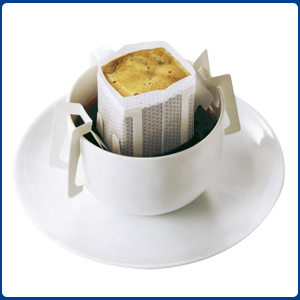

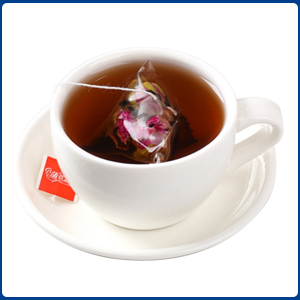

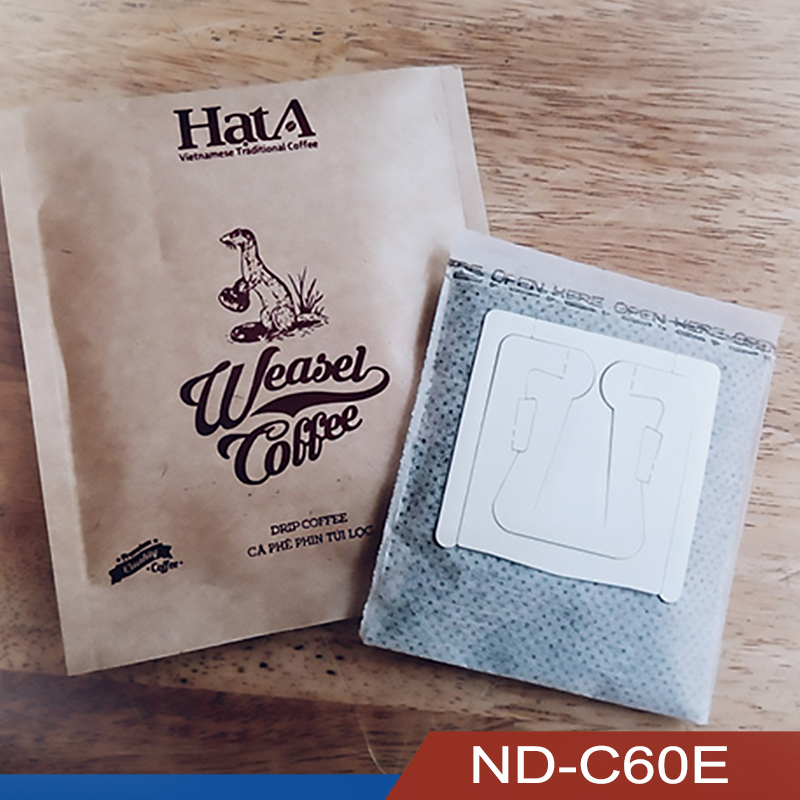

    Inner bag: Drip coffee bag,drip tea bag, flat bag with or without tag and thread.

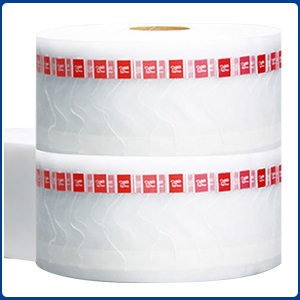

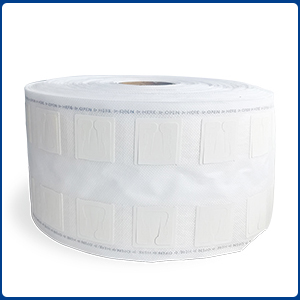

    Inner bag packaging material: Can made of non-woven fabric, PET mesh, corn fiber environmental protection material,etc.

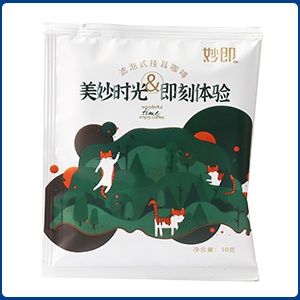

    Outer envelope: Three-side sealing(a variety of easy tear are available)

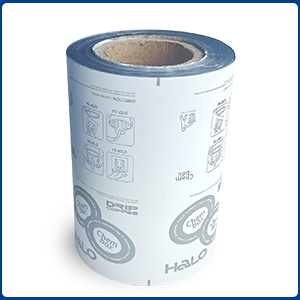

    Outer envelope packaging material: BOPP/AL/LDPE,T/VMPET,PET/CPP Etc. Multiple heat-sealable composite packaging materials are available.

Applications Of Drip Bag Coffee Packaging Machine

ND-C60E drip coffee packaging machine can pack drip coffee bag with outer envelope with nitrogen filling to extend the shelf life. This makes it possible for some cafes and ground coffee manufacturers to sell more coffee around the world.

The advanced nitrogen filling technology ensures that the coffee remains fresh for an extended period, preserving its aroma and flavor. This packaging solution is ideal for businesses looking to expand their market reach while maintaining product quality.

Machine Operation Demonstration

FAQ Of Drip Bag Coffee Packaging Machine

What is the sealing method of the drip coffee bag packaging machine?
Full ultrasonic Sealing ForInnerHeat Sealing For Envelope

Why use ultrasonic sealing method for the drip coffee bag.
1,Different packaging materials.
2,The sealing principle is different.
3,The edge banding is different.
4,The packaging machine is different.

Media Of Drip Bag Coffee Packaging Machine

Automatic Drip Coffee Bag Packaging Machine

ND-C60E Drip Coffee Bag Ultrasonic Packaging Machine

ND-C60E ...
