ND-VFC500 VFFS Packaging Machine

ND-VFC500

Model ND-VFC500 Vertical Form Fill Seal packaging machine specially for packaging products into big bags.Max bag range is 100L.Suitable for various granule ,powder products.

Packing Speed: 2-30bags/min
Filling Range: 25-100L
bag size: L: 200-1000mm, W: 200-510mm
ND-C80E Interactive Features Module

Feature Of VERTICAL PACKAGING MACHINE ND-VFC500

  • 1 Multi-language colorful HMI interaction interface, intuitive and simple operation.
  • 2 Adopt Japanese Mitsubishi or France Schneider PLC control system, can store 10 kinds of product parameters, and adjust parameters without stopping the machine.
  • 3 The film feeding mechanism is equipped with a brake motor, an inflatable shaft, and the film tension is uniform, which is convenient and quick to change the film. The film is pulled using a Schneider servo phone to ensure mechanical stability.
  • 4 Intelligent detection, correction detection (correction motor, touch screen operation), length detection (cursor, encoder), the error range is ±1mm.

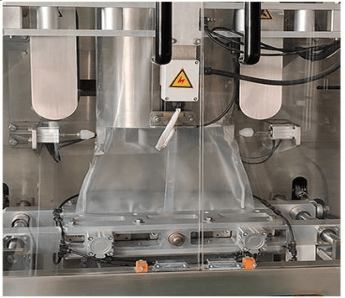

  • 5 The temperature control system adopts the Japanese Omron temperature control meter, and the horizontal and vertical sealing are independent temperature control; the sealing system adopts SMC cylinder, which is suitable for various Laminated films and PE films, and the packaging is beautiful and firm.
  • 6 No film, no material, no ribbon, automatic alarm, open door and shutdown alarm, failure alarm.
  • 7 Low failure rate, high efficiency and stability, safe production for more than 10 years.
  • 8 Machine welding structure is open , convenient for maintenance and cleaning.

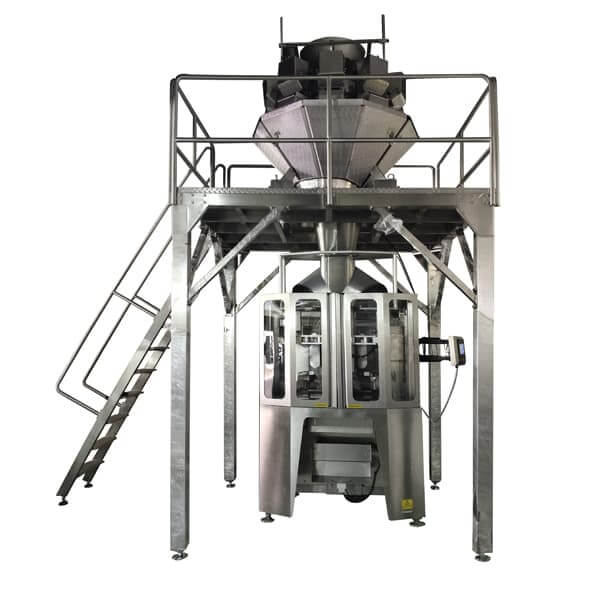

  • 9 Basic associated equipment,makes the machine give full play to its advantages.Realize automatic lifting,weighing, filling, bag making,sealing, cutting.

Environmental safe powder packing machine.Fully enclosed feeding, weighing, packaging, reduce dust pollution, accurate weighting, high quality bag making.Widely used for food, medicine, chemical and pharmaceutical powder industry.

Technical Parameters Of VERTICAL PACKAGING MACHINE ND-VFC500

Parameter Specification
Packing Speed 2-30bags/min
Filling Range 25-100L
bag size: L: 200-1000mm, W: 200-510mm
Max width of roll film 1050mm
Air consumption 0.65m³/min
Air Pressure 0.8mpa
Total Power 220V/380V,50-60HZ, 7.5Kw
Weight 900KG
Dimensions 2600*1740*2440mm (L*W*H)

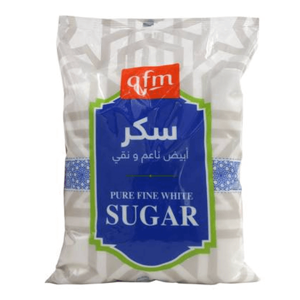

Bag Type Of VERTICAL PACKAGING MACHINE ND-VFC500

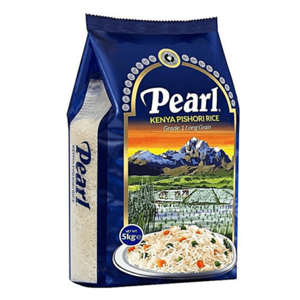

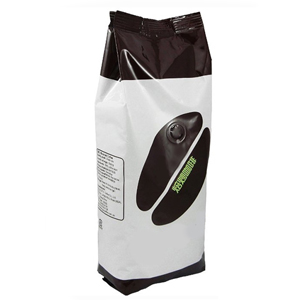

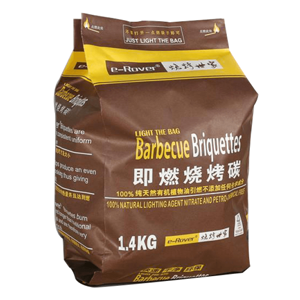

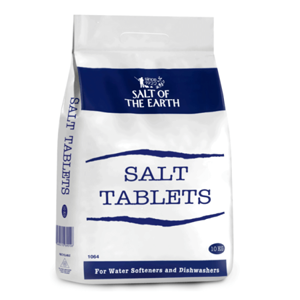

    Bag type: Pillow bag, gusseted bag, corner creased bag, flat bottom bag, one way exhaust valve can be added.

    Packaging Materials: Aluminized film, paper-plastic composite film and other laminated film.

Applications Of VERTICAL PACKAGING MACHINE ND-VFC500

Granules: Snacks, cereals, frozen products, pet food, veterinary medicine, chemicals, hardware etc.

Powder: Milk powder, flour, grain powder, starch, seasoning powder, protein powder, vegetable powder, fruit powder, coffee powder, medicine powder, etc.

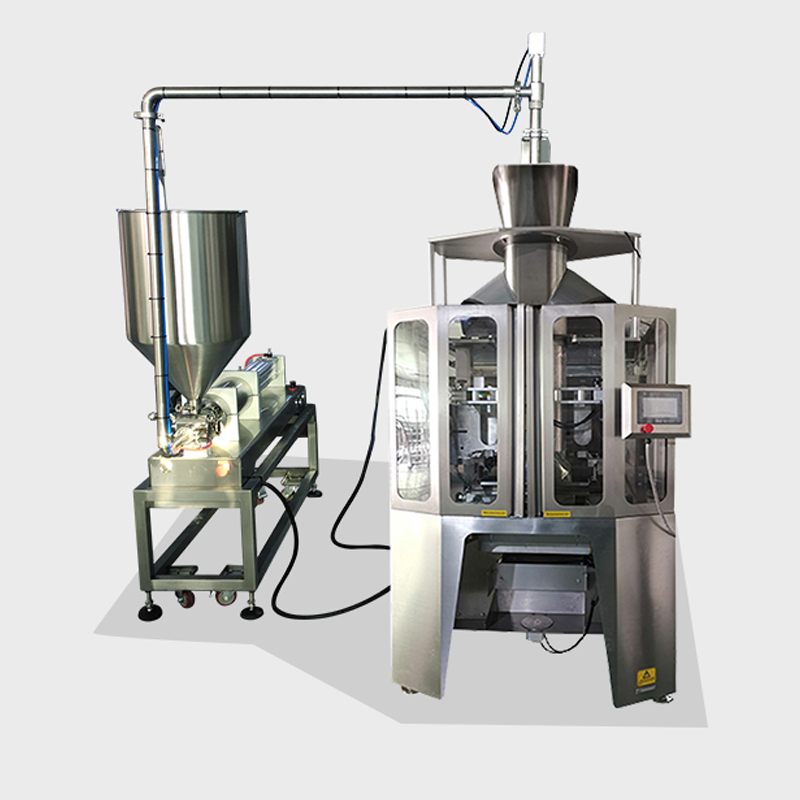

Paste and liquid: Tomato sauce, fruit jam, honey, salad dressing, putty paste oil, fruit juice,etc.

Machine Operation Demonstration

FAQ Of VERTICAL PACKAGING MACHINE ND-VFC500

How to solve the problem that the machine does not pull the film?
1、Check whether the longitudinal sealing block is stuck with the roll film, and clean the longitudinal sealing block.
2、Check whether the belt is slippery, clean the surface of the belt with a damp cloth.
3、More solution you can contact us for assistant.

How to solve the problem that the machine does not make bags?
1、Check if the horizontal seal block is stuck, clean the sealing surface of the horizontal seal block.
2、Check whether the material is clamped, and adjust the blanking time through the parameter setting.

Media Of VERTICAL PACKAGING MACHINE ND-VFC500

ND-VFC500 VFFS Packaging Machine

Our powder packaging machines are specifically designed for bagging and container filling products such as flour, salt, sugar, baking mixes, spices and ground coffee.
From premade pouch filling to vertical form fill and seal bagging and container filling, our packaging machines can handle all your free-flowing and non-free-flowing powders.

ND-VFC500...
