ND-VFC350 VFFS Packaging Machine

ND-VFC350 packaging machine is for packaging 1-8kg granular ,powder,paste, liquid products for food,health care products,  pharmaceuticals,chemical, hardware and other industries. Designed with the resource saving, safety,freshness preservation,highest efficient and waste reduction as their important features.

  • Max Speed: 50 bags/min
  • Filling Range: 5000ml(Max)
  • Bag Size: Min Size 100 mm*150 mm;Max Size 500 mm*350 mm
Feature Of VERTICAL PACKAGING MACHINE ND-VFC350

1.Multi-language colorful HMI interaction interface, intuitive and simple operation.

2.Adopt Japanese Mitsubishi or France Schneider PLC control system, can store 10 kinds of product parameters, and adjust parameters without stopping the machine.

3.The film feeding mechanism is equipped with a brake motor, an inflatable shaft, and the film tension is uniform, which is convenient and quick to change the film. The film is pulled using a Schneider servo phone to ensure mechanical stability.

4.Intelligent detection, correction detection (correction motor, touch screen operation), length detection (cursor, encoder), the error range is ±1mm.

5.The temperature control system adopts the Japanese Omron temperature control meter, and the horizontal and vertical sealing are independent temperature control; the sealing system adopts SMC cylinder, which is suitable for various Laminated films and PE films, and the packaging is beautiful and firm.

6.No film, no material, no ribbon, automatic alarm, open door and shutdown alarm, failure alarm.

7.Low failure rate, high efficiency and stability, safe production for more than 10 years.

8.Machine welding structure is open , convenient for maintenance and cleaning.

9.Basic associated equipment,makes the machine give full play to its advantages.Realize automatic lifting,weighing, filling, bag making,sealing, cutting.

OPTIONAL ACCESSORIES
1ModelND-VFC350
2Bag width150-350mm
3Bag length100-500mm
4Max speed50 bags/minute
5Max width of roll film720mm
6Filling range5000ml(Max)
7Air Pressure0.65mpa
8Air consumption0.6m3/min
9Voltage power220V/380V,50-60HZ, 5Kw
10Machine weight700Kgs
11Package dimension1320x1700x1810mm (L*W*H)
outline diagram

Bag type:Pillow bag, gusseted bag, corner creased bag, flat bottom bag, one way exhaust valve can be added.

Packaging materials: Aluminized film, paper-plastic composite film and other laminated film.

Related bag types

Degassing valve

Euroslot

Finger grip

Chain bag

Optional function

1.) Leak Proof Valve For Powder
2.) Various Cutting & Sealing
3.) Vacuum Pulling Film
4.) PE Film Sealing Device
5.) Material Support
6.) Finished Bag Support
7.) Gusset Device
8.) Flat Bottom Device
9.) Punch Hole
10.) Nitrogen Gas Filling
11.) Exhaust Air
12.) One Way Degassing Valve

Granules: Snacks, cereals, frozen products, pet food, veterinary medicine, chemicals, hardware etc.

Powder: Milk powder, flour, grain powder, starch, seasoning powder, protein powder, vegetable powder, fruit powder, coffee powder, medicine powder, etc.

Paste and liquid: Tomato sauce, fruit jam, honey, salad dressing, putty paste oil, fruit juice,etc.

POWDER PACKAGING SOLUTION

Our powder packaging machines are specifically designed for bagging and container filling products such as flour, salt, sugar, baking mixes, spices and ground coffee.
From premade pouch filling to vertical form fill and seal bagging and container filling, our packaging machines can handle all your free-flowing and non-free-flowing powders.

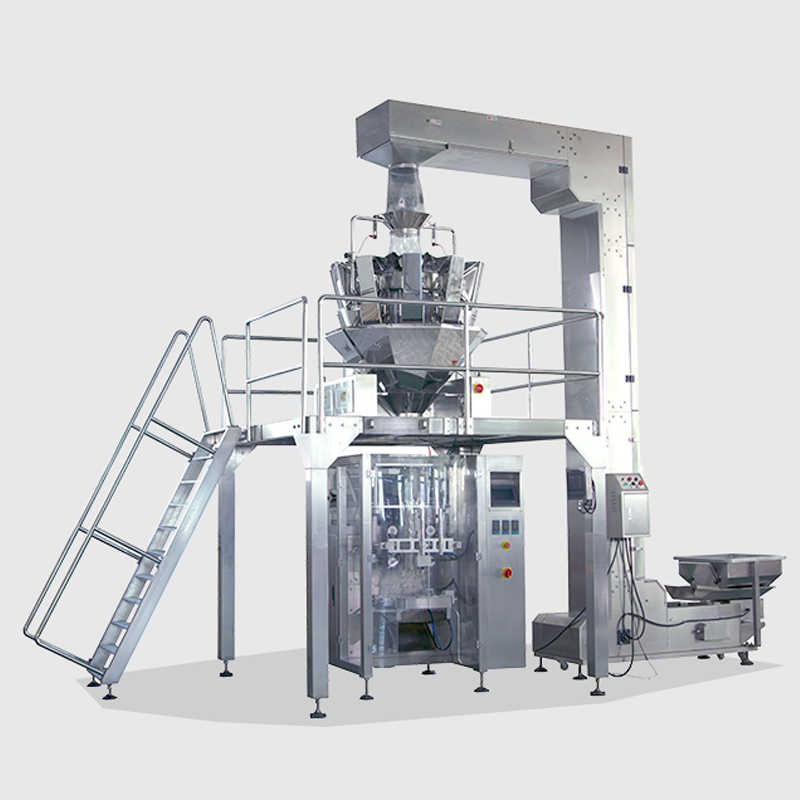

GRANULES PACKAGING SOLUTION

NEWIDEAPACK’s Vertical Form Fill and Seal machines provide the speed and accuracy required to vertically fill and seal bags of your granules to meet your packaging demands. VFFS Baggers can handle any granular product that requires laminate film structures and polyethylene films. Our granules bagging machines offer a variety of bag styles including gusset bags, pillow bags, doy-style stand-up bags, flat bottom bags as well as a variety of hole punches and tear notches. We are ready to help you decide on the right bagging machine to speed up your production.

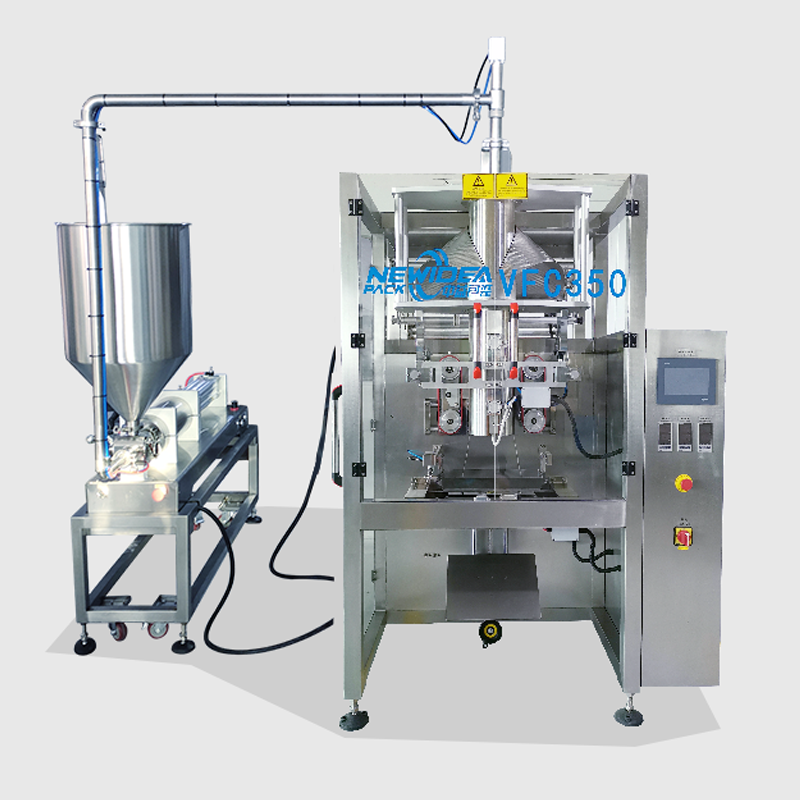

PASTE AND LIQUID PACKAGING SOLUTION

We provides a lot of liquid and paste packing solutions for different liquids and paste products. Our professional team will design and manufacture the liquid and paste packing equipment according to the properties of the specific liquid, paste, and other demands. For instance, it refers to liquidity, viscosity, packaging weight, bagged and so on.

1、Check whether the longitudinal sealing block is stuck with the roll film, and clean the longitudinal sealing block.
2、Check whether the belt is slippery, clean the surface of the belt with a damp cloth
3、More solution you cancontact us for assistant

1、Check if the horizontal seal block is stuck, clean the sealing surface of the horizontal seal block
2、Check whether the material is clamped, and adjust the blanking time through the parameter setting

More solution you can contact us for assistant

Detailed difference of each item, please click here to read more.

If you want to preserve the flavor of coffee to the greatest extent, let your customers have the wonderful experience of high-quality coffee, choosing pure non-woven material is the best choice. For packaging drip coffee bag with pure non-woven material, must choose ultrasonic sealing packaging machine.
