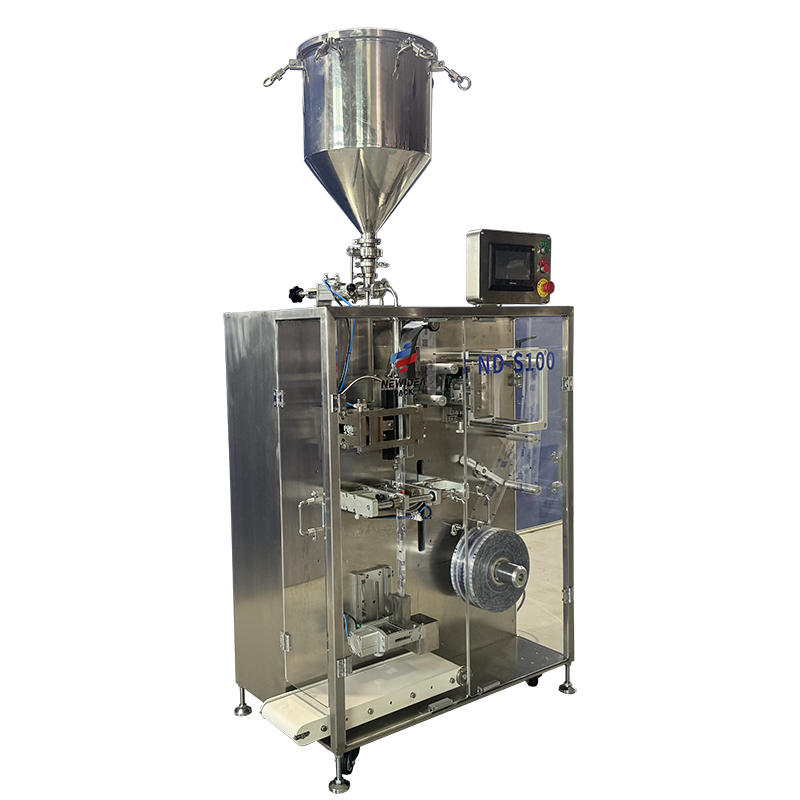

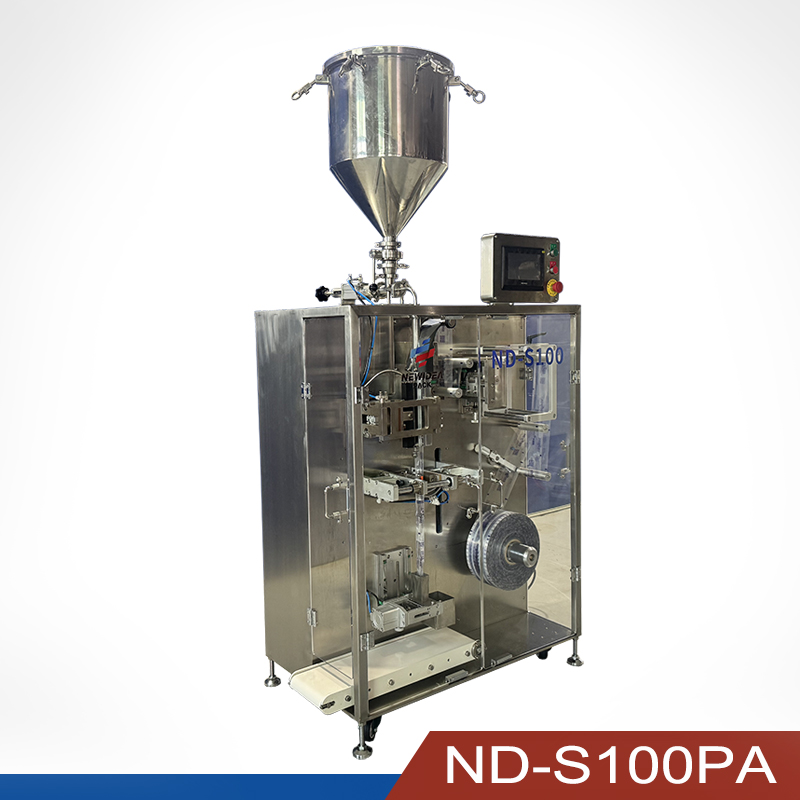

ND-S100PA Single-lane Round corner Paste Sauce Stick Bag Packaging Machine

The ND-S100PA Single-lane stick pack packaging machines, developed by our chief Italian designer, have reached the top international standards in terms of mechanical structure, electrical component configuration, and production technology. Let customers to use a high-performance, cost-effective, stable and reliable multi-lane packaging machine.
This series of packaging machines are suitable for packaging stick bag for instant coffee, freeze-dried coffee, and other medical, food, health care products, solid beverage industry.

  • Max Speed: 30-60 bags/min
  • Lane number: 1 lanes
  • Bag Size: Min Size 80mm*20mm;Max Size 200mm*45mm
Feature Of Single-lane Packaging Machine For Stick Pack ND-S100PA

1.It has the advantages of simple and convenient operation, stable and reliable operation, accurate positioning, etc;

2.Can use steel code, 2*3 mm steel characters, printing expiration date, batch number, production date (EXP.MM.DD.YY)

3.Adopts PLC and touch screen control, simple operation and high stability. The touch screen can clearly display all kinds of working status, operation instructions, fault status and production statistics;

4.It can be adapted to packaging materials such as laminated film (thickness 0.06-0.12mm);

5.The machine adopts modular design, which is convenient for daily maintenance and cleaning.

6.The photoelectric sensor is used to automatically measure the bag length to ensure accurate and stable bag length.

7.Bag cutting methods are optional: flat cutting, tooth cutting, round corner cutting, and special bag cutting.

1ModelND-S100PA
2Lane number1 lanes
3Packing speed30~60 bag/min
4Accuracy± 1%~2%
5Film width110mm
6Bag width20mm-45mm
7Bag length80mm-200mm
8Packaging film70μm-90μm, PE+AL+PETE
9Code typeRibbon code printer/Heat transfer code
10Power220V/50HZ single-phase
11Air supply0.6Mpa-0.8Mpa
12Gas Consumption0.18m³/min

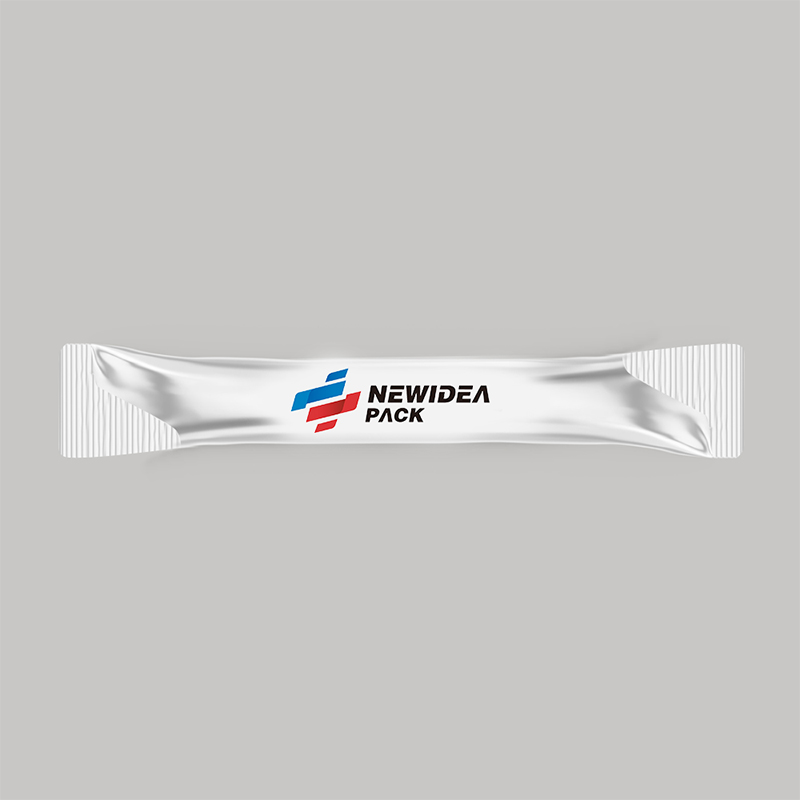

Bag type: Stick pack (with flat corners, rounded corners, special-shaped edges and other sealing forms for customers option)

Packaging materials: Aluminized film, paper-plastic film, and other laminated film.

lean more about stick pack

bag shape options

Tear notch

Pour spout

Various cut types

Microperfors

Various seal shapes

Automatic Single-lane Paste Packaging Machine is widely suitable for food, medicine, chemical industry. You can choose our paste goods production lines to upgrade your productivity of high automation. Our Automatic Multilane Paste Packaging Machine is simple to install, modify, clean. A stable pouch packaging machine to fill and seal your paste products efficiently and low-noise will guarantee your production of reliable quality.

1、Check whether the longitudinal sealing block is stuck with the roll film, and clean the longitudinal sealing block.
2、Check whether the belt is slippery, clean the surface of the belt with a damp cloth
3、More solution you cancontact us for assistant

1、Check if the horizontal seal block is stuck, clean the sealing surface of the horizontal seal block
2、Check whether the material is clamped, and adjust the blanking time through the parameter setting

Properly extend the horizontal sealing delay in the parameter setting.

More solution you can contact us for assistant

Detailed difference of each item, please click here to read more.

If you want to preserve the flavor of coffee to the greatest extent, let your customers have the wonderful experience of high-quality coffee, choosing pure non-woven material is the best choice. For packaging drip coffee bag with pure non-woven material, must choose ultrasonic sealing packaging machine.
