NGA-850 Automatic Bagging Machine

NGA-850 25-50kg Granule Automatic Bagging Machine

NGA-850

The NGA-850 25-50kg Automatic Granule Bagging Machine integrates fully automated weighing/bagging/sealing, compatibility with multiple bag types, dust-proof design, and a user-friendly multi-language HMI into one unit. It supports central computer monitoring.

Max Speed: 850 bph
Min Size: 800mm*500mm(Other sizes can be customized)
Max Size: 1000mm*600mm(Other sizes can be customized)

Feature Of 25-50kg Granule Automatic Bagging Machine

  • 1 High level automatic weighing, bag loading, bag opening, filling, sewing or heat sealing.
  • 2 Suitable for laminated woven , non laminated woven (with PE liner inside), kraft paper (with PE liner inside), PE, flat or gusseted open mouth bags.
  • 3 The design of compact bag-clamping and the reasonable layout of multiple dust removal ports to avoid dust.
  • 4 Multi language friendly HMI, easy to operate.
  • 5 With remote diagnosis function, easy to maintain.
  • 6 All the control system can be connected with the central computer,customer can control ,monitor, collect production data of the packing line by central computer.
  • 7 Compared with Model NGA-750 , with a larger capacity of empty bag storage, can place 500-600 bags, improve the efficiency.
  • 8 Customize the 25 kg-50 kg packaging line according your factory scene and individual requirements.

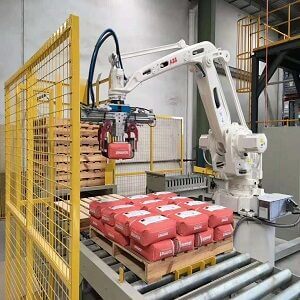

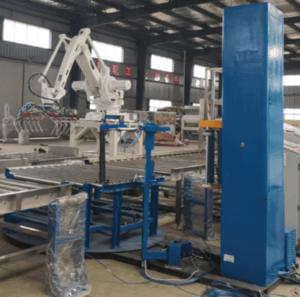

  • 9 It can equip with other related machines, like metal checker, weight checker, labeling , palletizing, finished pallet wrapping and so on. When the packaging line running, no need worker at the scene, save cost to the greatest extent.

Model NGA-850 bagging machine is an high speed automatic bagging machine for 25-50kg bags, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent，integrated， high efficiency，full automatic production.

Technical Parameters Of 25-50kg Granule Automatic Bagging Machine

Parameter Specification
Model NGA-850
Packing weight 25kg-50kg
Packing speed 600-850bags/hour
Weighting accuracy ±0.1%±0.2%
Bag size 800mm-1000mm(L)×500mm-600mm(W)(Other sizes can be customized)
Environment temperature 0~40℃
Voltage power/ Frequency AC380V 50Hz，45KW
Air requirement 0.4-0.6MPa，45Nm³/h
Machine dimension 4164mm(L)×4665mm(W)×4420mm(H)

Bag Type Of 25-50kg Granule Automatic Bagging Machine

    Bag type: Suitable for laminated woven , non laminated woven (with PE liner inside), kraft paper (with PE liner inside), PE, flat or gusseted open mouth bags.

Applications Of 25-50kg Granule Automatic Bagging Machine

Model NGA-850 Widely used for 25-50kg animal feed pellets, grains ,sugar, salt, fertilizer, chemical granule and other granule quantitative packing.

Machine Operation Demonstration

FAQ Of 25-50kg Granule Automatic Bagging Machine

The suction cup of the bagging machine can't suck the bag.
The suction cup is cracked Solution 1: Replace in time

The bag opening mechanism of the bagging machine does not move.
Photoelectric did not catch the reflector Solution: Clean up photoelectric dust.

The bag of the nip shaping machine tilts forward or backward during transportation.
The speed of the conveyor belt is not synchronized with the stand-up bag conveyor Solution: Adjust the frequency converter of the nip shaping machine.

The belt of the jaw shaping machine falls off or is loose.
The conveyor belt is stretched Solution: Adjust the belt tension of the driven belt wheel to a proper degree.

If you want to maximize the packaging efficiency of 25-50kg granules and reduce reliance on manual labor, allowing customers to lower labor costs while ensuring stable production capacity, choosing the fully automated integrated functions of weighing, bag loading, and sealing of the NGA-850 is the best option.

Media Of 25-50kg Granule Automatic Bagging Machine

NGA-850 25-50kg Granule Automatic Bagging Machine

Model NGA-850 bagging machine is an high speed automatic bagging machine for 25-50kg bags, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent，integrated， high efficiency，full automatic production.
