NGA-750 25-50kg Granule Automatic Bagging Machine

NGA-750 25-50kg Granule Automatic Bagging Machine

NGA-750

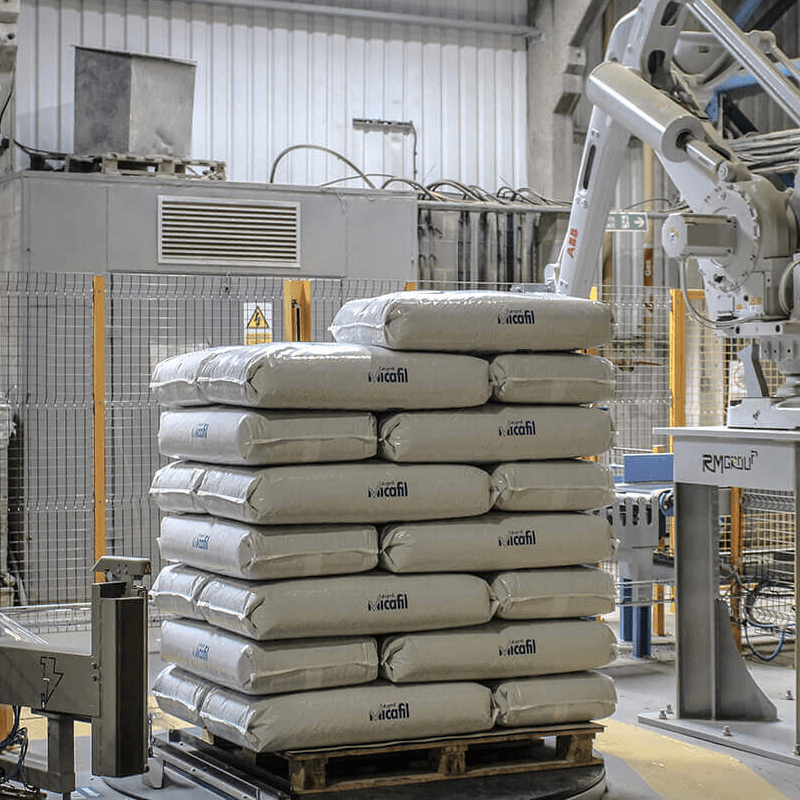

Model NGA-750 bagging machine is an automatic bagging machine for 25-50kg bags, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent，integrated， high efficiency， full automatic production.

Max Speed: 750 bph
Min Size: 800mm*500mm(Other sizes can be customized)
Max Size: 1000mm*600mm(Other sizes can be customized)

Feature Of 25-50kg Granule Automatic Bagging Machine

  • 1 High level automatic weighing, bag loading, bag opening, filling, sewing or heat sealing.
  • 2 Suitable for laminated woven , non laminated woven (with PE liner inside), kraft paper (with PE liner inside), PE, flat or gusseted open mouth bags.
  • 3 The design of compact bag-clamping and the reasonable layout of multiple dust removal ports to avoid dust.
  • 4 Multi language friendly HMI, easy to operate.
  • 5 With remote diagnosis function, easy to maintain.
  • 6 All the control system can be connected with the central computer,customer can control ,monitor, collect production data of the packing line by central computer.
  • 7 Customize the 25 kg-50 kg packaging line according your factory scene and individual requirements.
  • 8 It can equip with other related machines, like metal checker, weight checker, labeling , palletizing, finished pallet wrapping and so on. When the packaging line running, no need worker at the scene, save cost to the greatest extent.

Model NGA-750 bagging machine is an automatic bagging machine for 25-50kg bags, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent，integrated， high efficiency， full automatic production.

Technical Parameters Of 25-50kg Granule Automatic Bagging Machine

Parameter Specification
Model NGA-750
Packing weight 25kg-50kg
Packing speed 500-750bags/hour
Weighting accuracy ±0.1%±0.2%
Bag size 800mm-1000mm(L)×500mm-600mm(W)(Other sizes can be customized)
Environment temperature 0~40℃
Voltage power/ Frequency AC380V 50Hz，12KW
Air requirement 0.4-0.6MPa，15Nm³/h
Machine dimension 5500×3420×4630(L*W*H,mm)

Bag Type Of 25-50kg Granule Automatic Bagging Machine

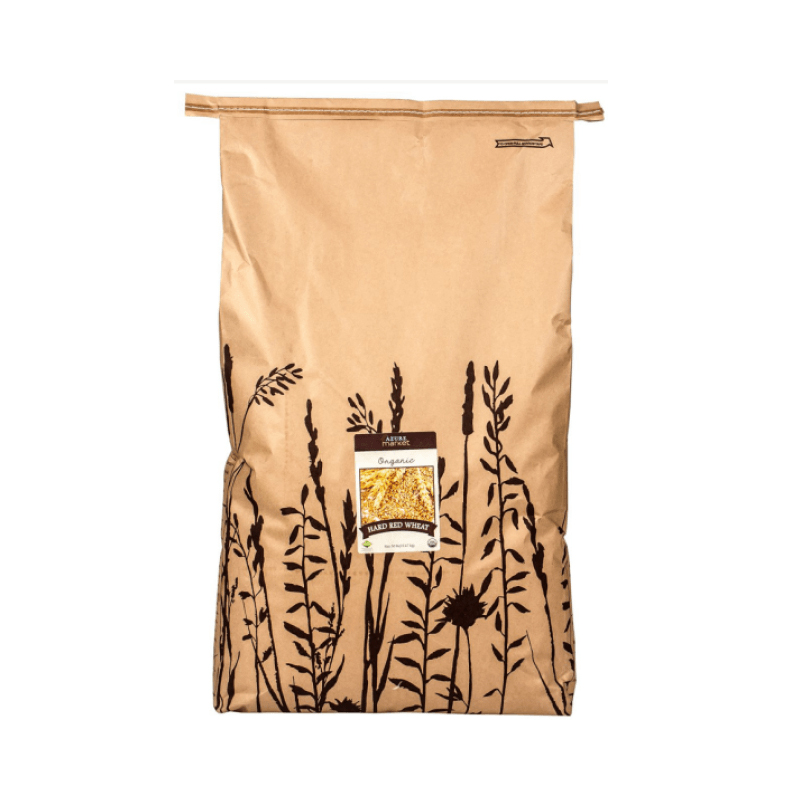

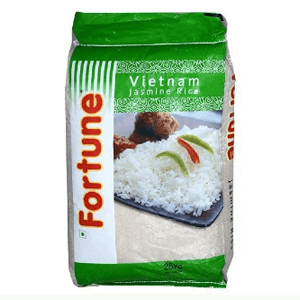

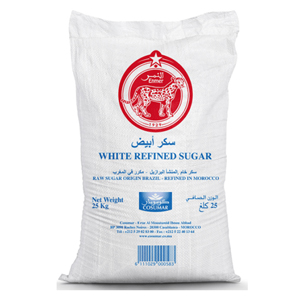

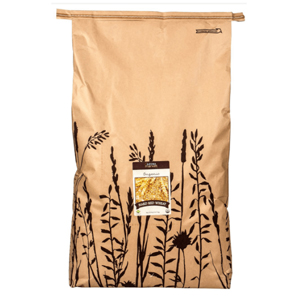

    Bag type: Suitable for laminated woven , non laminated woven (with PE liner inside), kraft paper (with PE liner inside), PE, flat or gusseted open mouth bags.

Applications Of 25-50kg Granule Automatic Bagging Machine

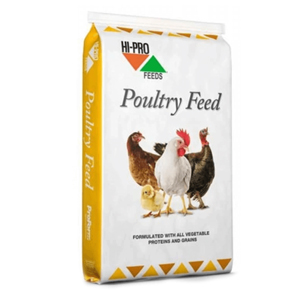

NGA-750 Widely used for 25-50kg animal feed pellets, grains ,sugar, salt, fertilizer, chemical granule and other granule quantitative packing.

Please find our customer case study of 20-50kg animal feed by click here :

Machine Operation Demonstration

FAQ Of 25-50kg Granule Automatic Bagging Machine

The suction cup of the bagging machine can't suck the bag.
The suction cup is cracked Solution 1: Replace in time

The bag opening mechanism of the bagging machine does not move.
Photoelectric did not catch the reflector Solution: Clean up photoelectric dust.

The bag of the nip shaping machine tilts forward or backward during transportation.
The speed of the conveyor belt is not synchronized with the stand-up bag conveyor Solution: Adjust the frequency converter of the nip shaping machine.

The belt of the jaw shaping machine falls off or is loose.
The conveyor belt is stretched Solution: Adjust the belt tension of the driven belt wheel to a proper degree.

Media Of 25-50kg Granule Automatic Bagging Machine

NGA-750 25-50kg Granule Automatic Bagging Machine

Model NGA-750 bagging machine is an automatic bagging machine for 25-50kg bags, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent，integrated， high efficiency， full automatic production.

NGA-750 ...
