ND-C80E Product Main Section with Carousel

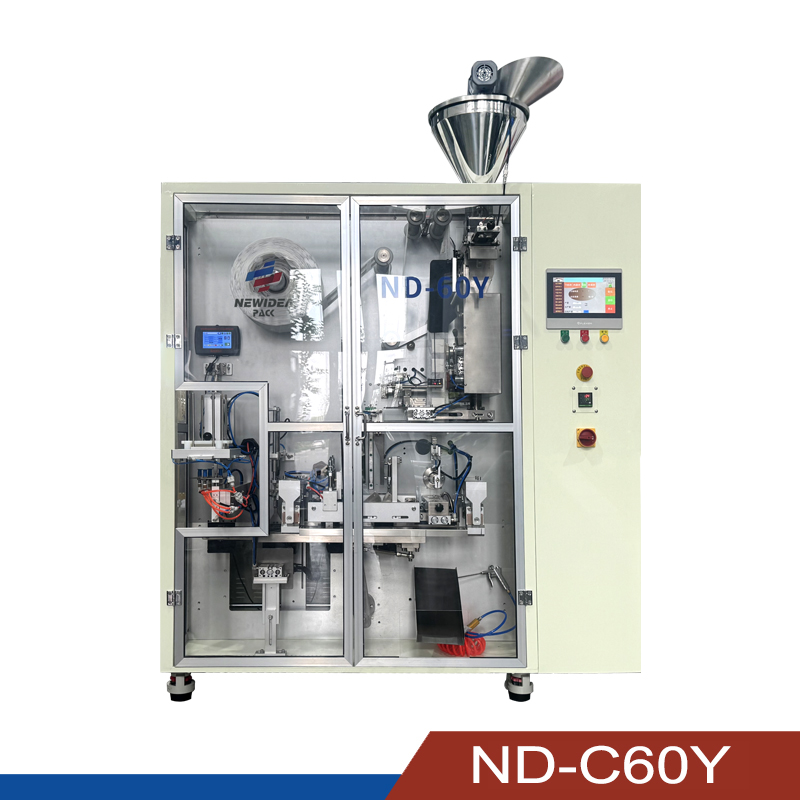

ND-C60Y Pre-made Bag Drip Coffee Bag Ultrasonic Packaging Machine

ND-C60Y

The ND-C60Y embraces the concept of flexible production, breaking the limitations of traditional packaging machines that only support standard pouch formats and rely on large-scale manufacturing. It is an ideal solution for specialty coffee roasters, tea brands, and emerging health food businesses.

Packing Speed: 15~20 bags/min
Filling Range: 8-12g
Inner Bag Size: 90×75mm/80×100mm
Outer Bag Dimensions 100×120mm /120×140mm
ND-C80E Interactive Features Module

Feature Of Pre-made Bag Drip Bag Coffee Packaging Machine

  • 1 The machine has few adjustable parameter points and simple operation.
  • 2 The appearance of the main body is treated with electrostatic spray, and the part in contact with food is made of 304 stainless steel, which meets the requirements of food processing and takes into account the appearance requirements.
  • 3 Compact structure, reasonable layout, the bottom of the machine is equipped with casters for easy movement.
  • 4 The hardware adopts servo motor and ball screw as the main movement mode, which has high life, low noise, and reduced air consumption, and has low requirements on the air source of the workshop.
  • 5 The intelligent alarm of the machine includes no material alarm, no film alarm in the inner bag, film alarm in the inner bag, insufficient vacuum alarm, air source undervoltage alarm and overload alarm, etc., to ensure the production pass rate to a greater extent.
  • 6 The vacuum system of the machine adopts SMC vacuum generator, which has filter and alarm, and the vacuum performance is stable and reliable.

Stable freshness preservation quality reduces customer complaints about "flavor inconsistency" and boosts user repurchase rates. It also lowers training costs for new operators, allowing consistent quality to be maintained in both small-batch trial production and large-scale manufacturing.

Technical Parameters Of Pre-made Bag Drip Bag Coffee Packaging Machine

Parameter Specification
Model ND-C60Y
Packing Speed 15-20 bags/min
Filling Range 8-12g
Inner Bag Size 90×75mm/80×100mm
Outer Bag Dimensions 100×120mm/120×140mm

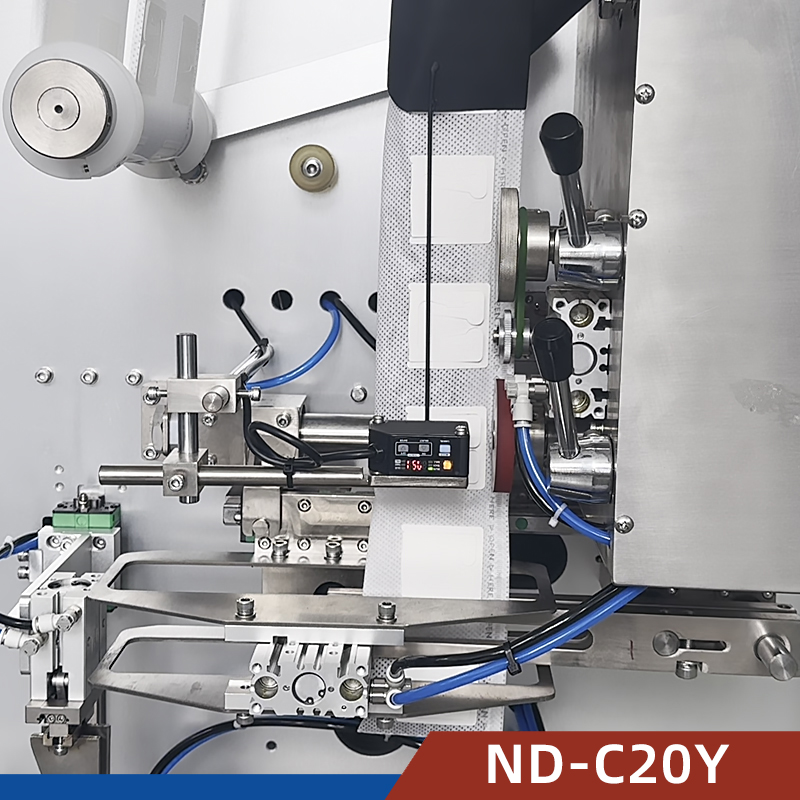

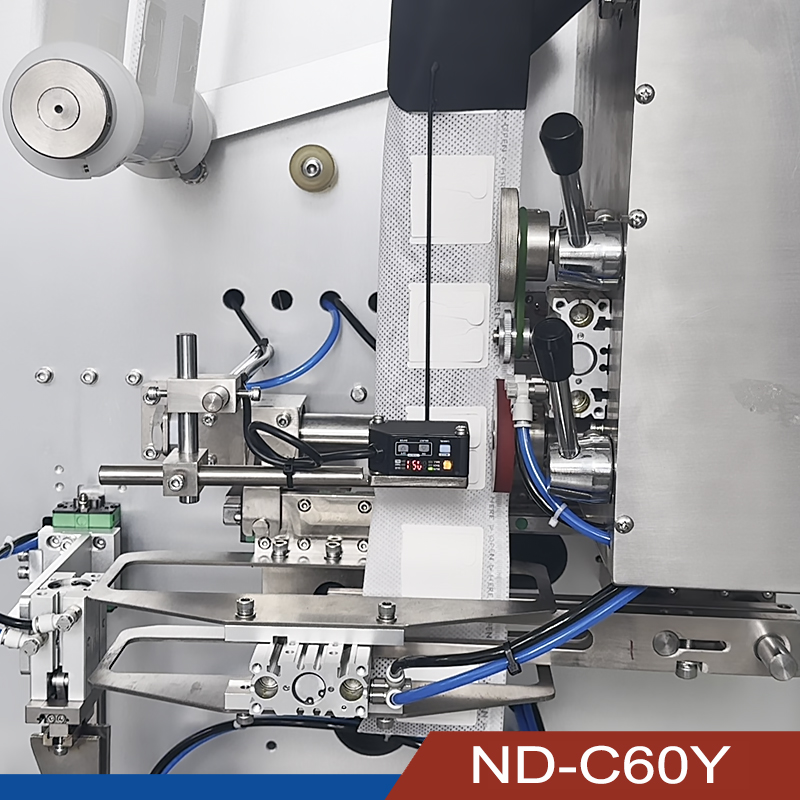

Sealing Method Ultrasonic Sealing
Air consumption 0.6Mpa,0.3m³/min
Power Supply 220V/380V、50Hz/60Hz 3.5kW
Weight 650kg
Dimensions 1300×895×2267mm

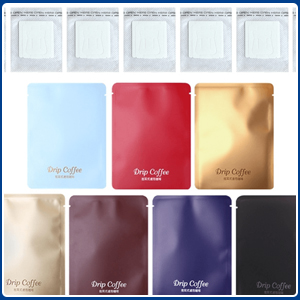

Bag Type Of Pre-made Bag Drip Bag Coffee Packaging Machine

    Inner bag: Drip coffee bag,drip tea bag, flat bag with or without tag and thread.

    Inner bag packaging material: Can made of non-woven fabric, PET mesh, corn fiber environmental protection material,etc.

    Outer envelope: Pre-made bag.

Applications Of Pre-made Bag Drip Bag Coffee Packaging Machine

This machine is very suitable for cafes and tea houses, with small dimensions, it can automatic weighting and sealing the ground coffee and tea, your customer not only can enjoy at your place also can take out enjoy it anywhere anytime.

You also can use this machine for making bags , and sell bags.

Compared with traditional taper filter paper only can use the special cups , drip bags can suitable for all kinds of cups, don’t worry about the coffee cups anymore.

Machine Operation Demonstration

FAQ Of Pre-made Bag Drip Bag Coffee Packaging Machine

What is the sealing method of the drip coffee bag packaging machine?
WInner drip bag is ultrasonic sealing, outer bag is a pre-made bag.

Why use ultrasonic sealing method for the drip coffee bag.
1,Different packaging materials.
2,The sealing principle is different.
3,The edge banding is different.
4,The packaging machine is different.

Merchants can quickly launch small-batch fresh-preserved products based on user needs (e.g., holiday limited editions, niche flavor samples), meeting consumers’ dual demands for "freshness + personalization."

Media Of Pre-made Bag Drip Bag Coffee Packaging Machine

ND-60Y Pre-made Bag Drip Coffee Bag Ultrasonic Packaging Machine

ND-60Y inner and outer bag integrated packaging machine is a new generation of packaging machine designed according to market demand and international first-class brand standards. It integrates advanced industrial automation concepts at home and abroad, meets customers’ needs for intelligent production, and has obtained a number of inventions and innovation

ND-C60Y ...
