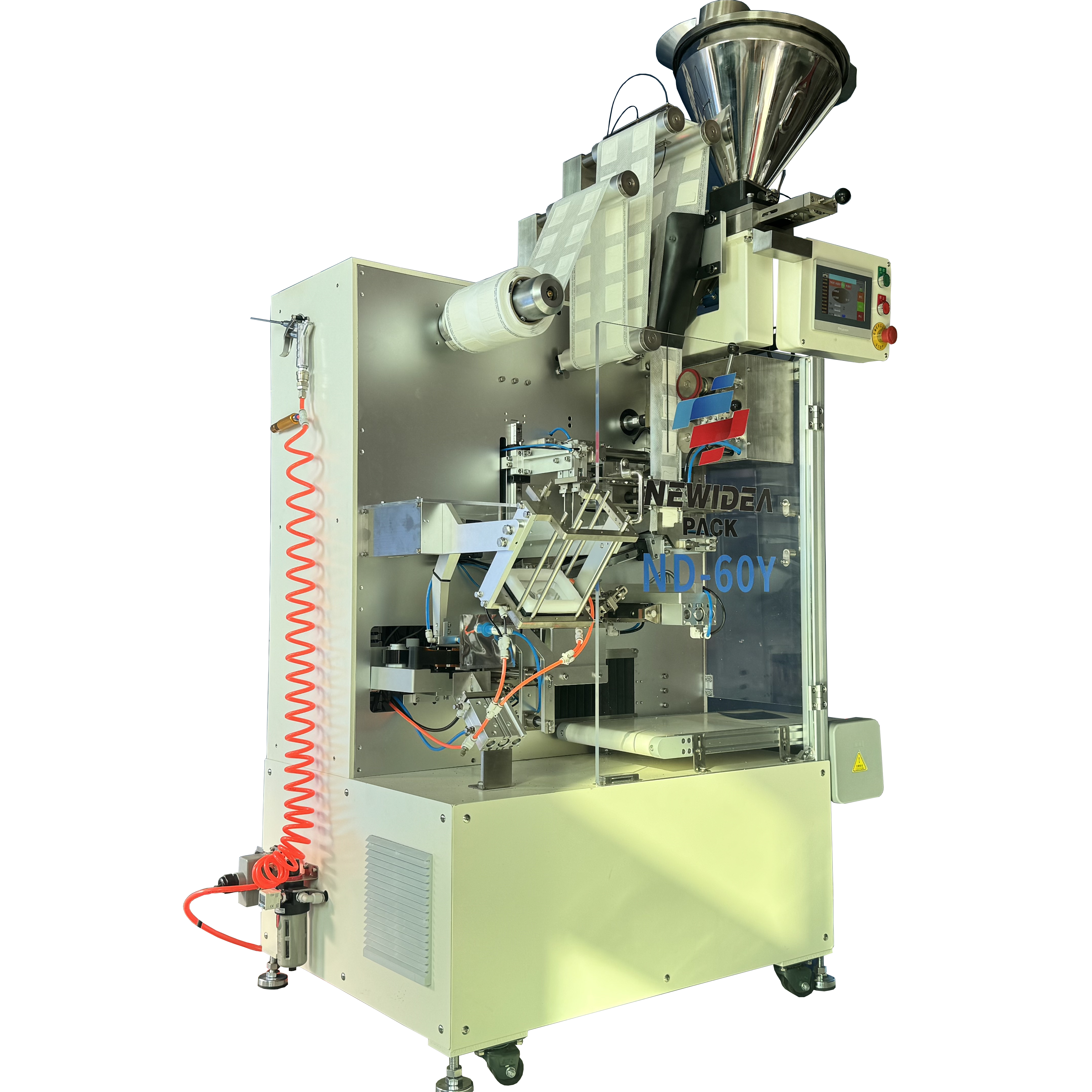

ND-60Y Pre-made Bag Drip Coffee Bag Ultrasonic Packaging Machine
ND-60Y inner and outer bag integrated packaging machine is a new generation of packaging machine designed according to market demand and international first-class brand standards. It integrates advanced industrial automation concepts at home and abroad, meets customers’ needs for intelligent production, and has obtained a number of inventions and innovation
patents.
Feature Of Pre-made Bag Drip Bag Coffee Packaging Machine
1. The machine has few adjustable parameter points and simple operation.
2. The appearance of the main body is treated with electrostatic spray, and the part in contact with food is made of 304 stainless steel, which meets the requirements of food processing and takes into account the appearance requirements.
3.Compact structure, reasonable layout, the bottom of the machine is equipped with casters for easy movement.
4. The hardware adopts servo motor and ball screw as the main movement mode, which has high life, low noise, and reduced air consumption, and has low requirements on the air source of the workshop.
5. The intelligent alarm of the machine includes no material alarm, no film alarm in the inner bag, film alarm in the inner bag, insufficient vacuum alarm, air source undervoltage alarm and overload alarm, etc., to ensure the production pass rate to a greater extent.
6.The vacuum system of the machine adopts SMC vacuum generator, which has filter and alarm, and the vacuum performance is stable and reliable.
OPTIONAL ACCESSORIES
| 1 | Model | ND-60Y |
| 2 | Packing Speed | 15-20 bags/min |
| 3 | Filling Range | 4-10g ground coffee, 1.5-10g tea |
| 4 | Inner Bag Size | 75mm*90mm |
| 5 | Outer Bag Size | 100mm*125mm |
| 5 | Air Consumption | 0.6Mpa,0.2m³/min |
| 6 | Sealing Method | Ultrasonic Sealing |
| 7 | Voltage/Power | 220V/3KW |
| 8 | Air consumption | 300 L/min |
| 9 | Machine dimension | 1183*857*2047mm |

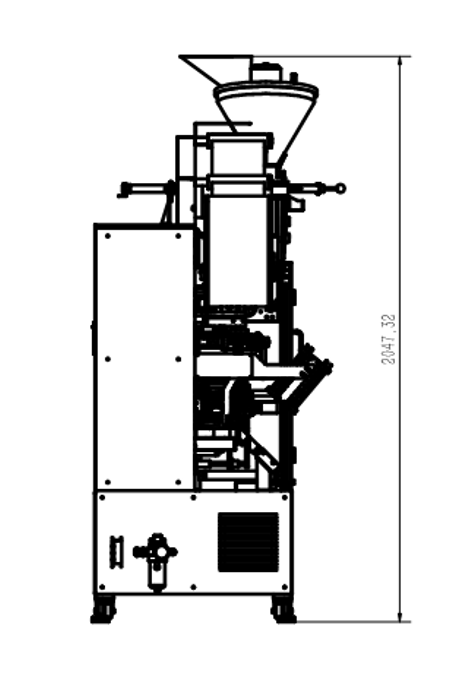

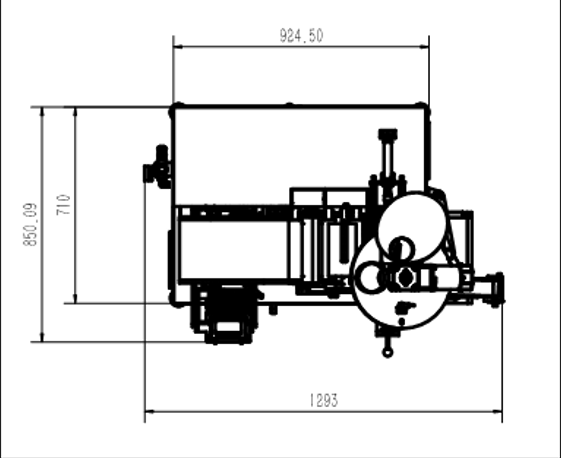

outline Diagram
Inner bag: Drip coffee bag,drip tea bag, flat bag with or without tag and thread.
Inner bag packaging material:Can made of non-woven fabric, PET mesh, corn fiber environmental protection material,etc.
Outer envelope: Pre-made bag.
Related bag types
This machine is very suitable for cafes and tea houses, with small dimensions, it can automatic weighting and sealing the ground coffee and tea, your customer not only can enjoy at your place also can take out enjoy it anywhere anytime.
You also can use this machine for making bags , and sell bags.
Compared with traditional taper filter paper only can use the special cups , drip bags can suitable for all kinds of cups, don’t worry about the coffee cups anymore.
Detailed difference of each item, please click here to read more.
If you want to preserve the flavor of coffee to the greatest extent, let your customers have the wonderful experience of high-quality coffee, choosing pure non-woven material is the best choice. For packaging drip coffee bag with pure non-woven material, must choose ultrasonic sealing packaging machine.
