nD-p300 pre-made bag packaging machine

ND-P300 pre-made bag packaging machine is widely used for packaging coffee beans, coffee powder, biscuits, dried fruits and other foods. Doypack , gussted bag, four sides sealing bags, zippered bags, bag with breathable valve bag and other kind of pre-made bags can be packed to meet the diversified needs of customers.

  • Packing Speed: 10-15 bags/min
  • Filling Range: 5-1500g
  • bag size: 80mm≤W≤300mm;100mm≤L≤300mm
  • Voltage: 220V, Single-phase, 50/60HZ,1.2KW;
Feature Of RE-MADE POUCHES PACKAGING MACHINE ND-P300

1.Convenient operation, use advanced PLC cooperate with touch screen and electrical control system, color human-computer operate interface

 2.Automatic inspection: no bag or bag opening erro, no filling and no sealing. Bag is Reusable to avoid waste of packaging materials and products.

3.Safety device: shut down when air pressure is abnormal, and alarm when heater is disconnected.

4.Glass safety door. machine stop when door open, to protect the safety of operators and prevent dust.

5.The width of bag can be adjusted by motor. Press the control key to adjust the width of the clip, which is simple to operate and saves time.

6.Low consumption of packaging materials, this machine is applicable to prefabricated bags, with perfect bag type that sealing firm and beautiful.

7.Different feeders can be replaced for filling solid, liquid, slurry, powder and other materials

OPTIONAL ACCESSORIES
1ModelND-P300
2Bag size range80mm≤W≤300mm;100mm≤L≤300mm
3Max speed80 bags/minute
4Sealing type520mm
5Sealing width3000ml(Max)
6Air Pressure0.65mpa
7Air consumption0.3m3/min
8Voltage power220V,50-60HZ,1.2Kw
9Machine weight800Kgs
10Package dimension1895x610x1472mm (L*W*H)

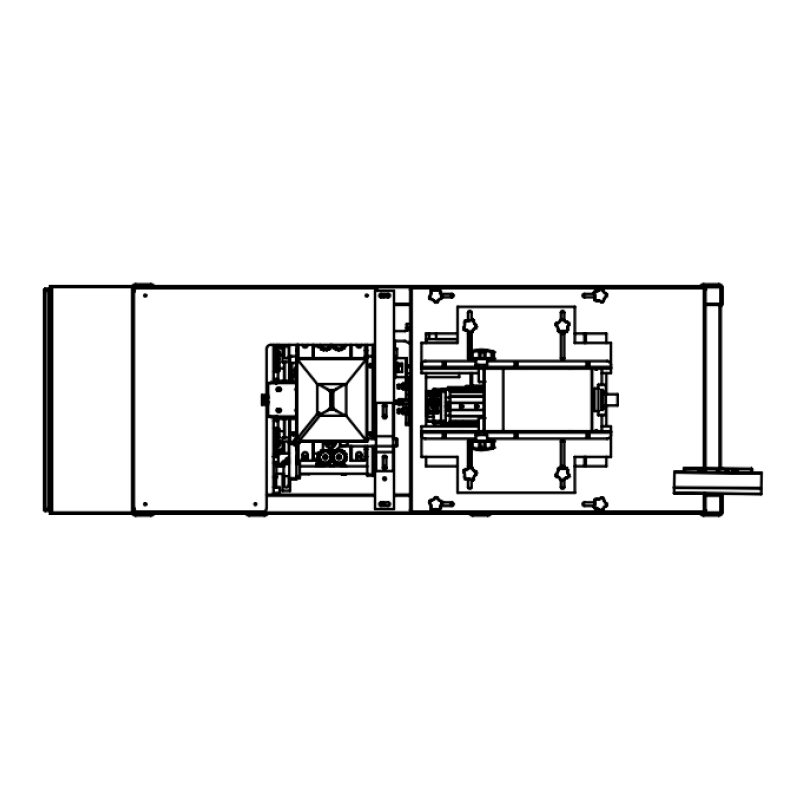

outline diagram

Bag type: Flat bag (3 sides seal),back seal bag, doypack,gusseted bag, gusseted bag with 4 sides seal, flat bottom bag, bag with zipper etc.

Related bag types

3 sides seal

back seal bag

doypack

gusseted bag

gusseted bag with 4 sides seal

flat bottom bag

bag with zipper

Optional Function

1.) Bag Beater Device
2.) Bag Waving Device
3.) Bag Support Device
4.) Blowing Bag Device
5.) Gripper Shake Device
6.) Hopper Shake Device
7.) Hopper Opening Device
8.) Print Device
9.) Conveyor Device
10.) Zipper Device
11.) Gusset Device
12.) Inflation Device

Granules: Coffee beans,snacks, cereals, grains,frozen products, pet food, veterinary medicine etc.

Powder: Coffee powder, milk powder, grain powder, starch, seasoning powder, protein powder, vegetable powder, fruit powder,medicine powder, etc.

Paste and liquid: Tomato sauce, BBQ sauce,mayonnaise,fruit jam, honey, salad dressing etc.

Pls find our Norway customer application in coffee industry from this link:https://www.newideapack.com/nd-p300-prefabricated-bags-packaging-machine/

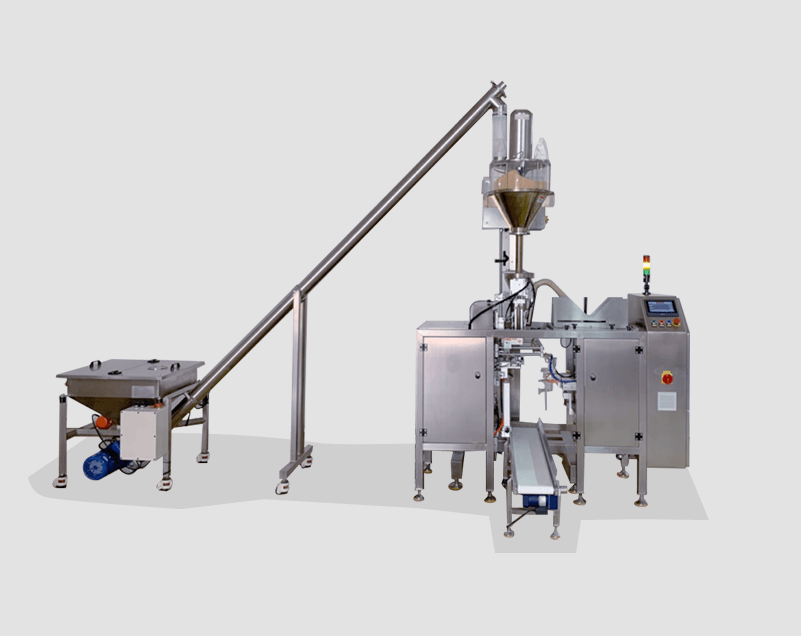

POWDER PACKAGING SOLUTION

Our powder packaging machines are specifically designed for bagging and container filling products such as flour, salt, sugar, baking mixes, spices and ground coffee.
From premade pouch filling to vertical form fill and seal bagging and container filling, our packaging machines can handle all your free-flowing and non-free-flowing powders.

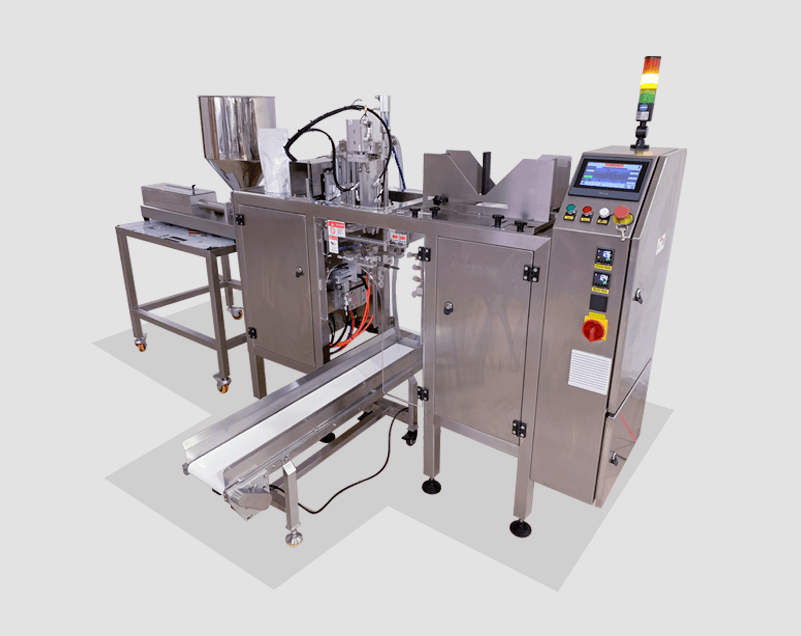

GRANULES PACKAGING SOLUTION

NEWIDEAPACK’s Vertical Form Fill and Seal machines provide the speed and accuracy required to vertically fill and seal bags of your granules to meet your packaging demands. VFFS Baggers can handle any granular product that requires laminate film structures and polyethylene films. Our granules bagging machines offer a variety of bag styles including gusset bags, pillow bags, doy-style stand-up bags, flat bottom bags as well as a variety of hole punches and tear notches. We are ready to help you decide on the right bagging machine to speed up your production.

PASTE AND LIQUID PACKAGING SOLUTION

We provides a lot of liquid and paste packing solutions for different liquids and paste products. Our professional team will design and manufacture the liquid and paste packing equipment according to the properties of the specific liquid, paste, and other demands. For instance, it refers to liquidity, viscosity, packaging weight, bagged and so on.

1、Check whether the longitudinal sealing block is stuck with the roll film, and clean the longitudinal sealing block.
2、Check whether the belt is slippery, clean the surface of the belt with a damp cloth
3、More solution you cancontact us for assistant

1、Check if the horizontal seal block is stuck, clean the sealing surface of the horizontal seal block
2、Check whether the material is clamped, and adjust the blanking time through the parameter setting

Properly extend the horizontal sealing delay in the parameter setting.

More solution you can contact us for assistant

Detailed difference of each item, please click here to read more.

If you want to preserve the flavor of coffee to the greatest extent, let your customers have the wonderful experience of high-quality coffee, choosing pure non-woven material is the best choice. For packaging drip coffee bag with pure non-woven material, must choose ultrasonic sealing packaging machine.

ND-P300 Pre-Made Bag Packaging Machine Product sheet
