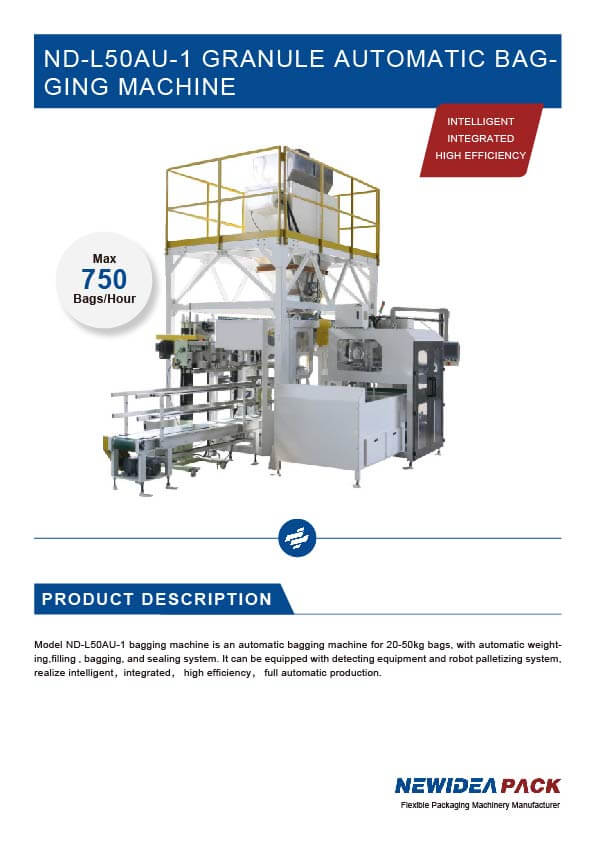

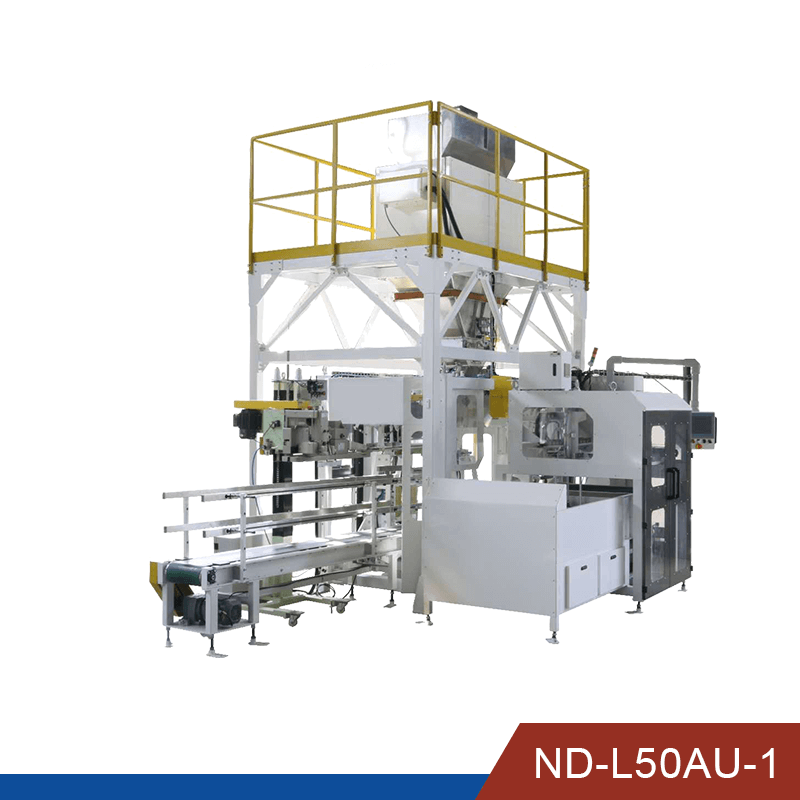

ND-L50AU-1 20-50KG Granule automatic bagging machine

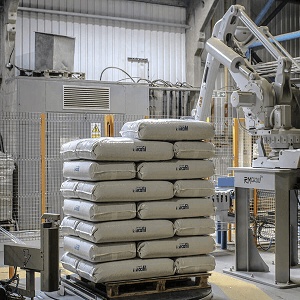

Model ND-L50AU-1 bagging machine is an automatic bagging machine for 20-50kg bags, with automatic weighting,filling , bagging, and sealing system. It can be equipped with detecting equipment and robot palletizing system, realize intelligent,integrated, high efficiency, full automatic production.

  • Max Speed: 750 bph
  • Min Size: 800mm*500mm
  • Max Size:1000mm*600mm
Feature Of Intelligent Automatic 20kg-50kg Bag Packaging Line ND-L50AU-1

1. High level automatic weighing, bag loading, bag opening, filling, sewing or heat sealing.

2. Suitable for woven bags, Kraft paper bags, soft open-top packaging bags.

3. The design of compact bag-clamping and the reasonable layout of multiple dust removal ports to avoid dust.

4. Multi-language friendly HMI, easy to operate.

5. Using world-renowned brands of pneumatic, electric components, to make the machine safe, reliable, fast and stable.

6. With remote diagnosis function, easy to maintain.

7. All the control system can connect with the central computer, customer can control, monitor, collect production data of the packing line by central computer.

8. Customize the 20 kg-50 kg packaging line according your factory scene and individual requirements.

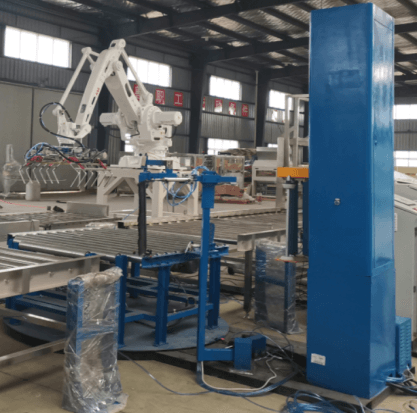

9.It can equip with other related machines, like metal checker, weight checker, labeling , palletizing, finished pallet wrapping and so on. When the packaging line running, no need worker at the scene, save cost to the greatest extent.

1ModelND-L50AU-1
2Packing weight20kg-50kg
3Packing speed500-750bags/hour
4Weighting accuracy±0.1%-0.2%
5Bag size(L*W)800mm-1000mm(L)×500mm-600mm(W)
6 Environment temperature0~40℃
7Voltage power/ FrequencyAC380V 50Hz,12KW
8Air requirement0.4-0.6MPa,15Nm3/h
9Machine dimension
(L*W*H,mm)
5500×3420×4630

Flat bag or gusset bag made by the materials of polyethylene, polypropylene woven bags, kraft paper bags, laminated bags, bags with inner lining.

According the sealing method there are single-line stitching, double-line stitching, hemming stitching, inner lining heat sealing,&outer bag stitching, edging stitching and heat sealing.

ND-L50AU-1 is for solve the packing requirement of 20-50kg woven bags, kraft paper bags, soft open-top packaging bags by sewing or heat sealing.Widely used for animal feed pellets, grains , cereals,sugar, salt, fertilizer, chemical and other industries.

The suction cup is cracked Solution 1: Replace in time

Photoelectric did not catch the reflector Solution: Clean up photoelectric dust

The speed of the conveyor belt is not synchronized with the stand-up bag conveyor Solution: Adjust the frequency converter of the nip shaping machine

The conveyor belt is stretched Solution: Adjust the belt tension of the driven belt wheel to a proper degree
